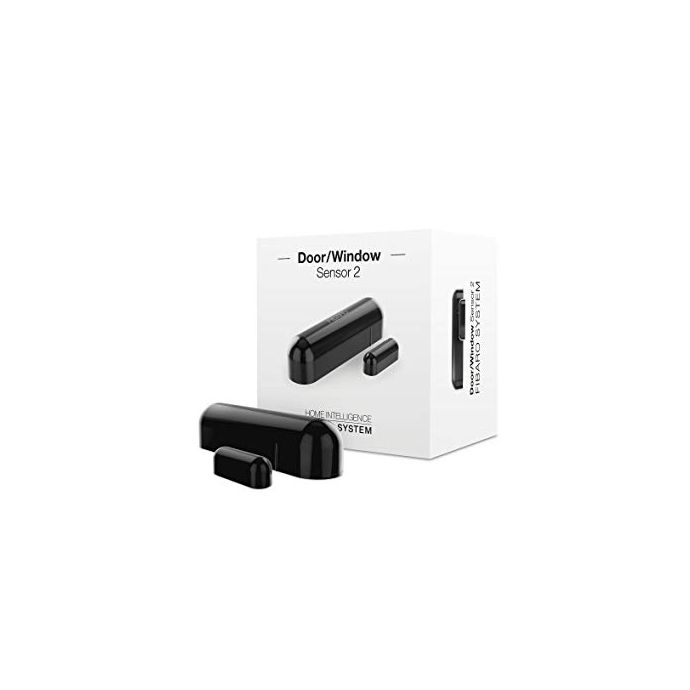

Fibaro Z-wave magnetic contact window/door sensor in black colour

Technical Specifications of the White Window or Door Sensor FGDW-002-3 ZW5

The sensor FGDW-002-3 ZW5 of Fibaro is equipped with a built-in temperature sensor.

What technical characteristics does the sensor FGDW-002-3 ZW5 have?

• Compatible with any Z-Wave or Z-Wave + controller.
• Supports protected mode (security mode of the Z-Wave network) with AES-128 encryption.
• It works with other Z-Wave network devices, but as a battery device it does not take part in signal routing.
• The opening of the door / window is detected by separating the sensor body and a magnet.
• Built-in temperature sensor.
• Detects handling, when it is separated or opened.
• It works with batteries.
• Visual LED indicator that indicates the status of the device.
• 7 color variations:
• White - FGDW-002-1
• Silver - FGDW-002-2
• Black - FGDW-002-3
• Beige - FGDW-002-4
• Café Claro - FGDW-002-5
• Coffee - FGDW-002-6
• Dark Coffee - FGDW-002-7

What technical specifications does the sensor FGDW-002-3 ZW5 have?

• Power source: 3.6V DC battery
• Battery type: ER14250 (1 / 2AA)
• Battery life: est. 2 years (default setting)
• Compliance with EU directives: RED 2014/53 / EU
• RoHS 2011/65 / EU
• Radio protocol: Z-Wave (chip of the 500 series)
• Radio frequency: 868.4 MHz EU;
• 908.4 MHz US;
• 921.4 MHz ANZ;
• 869.0 MHz RU;
• Power of radio signal: up to 2 dBm (PIRE)
• Range: up to 50 m (164 ft) outdoors
• up to 40 m (131 ft) inside
• (depending on the terrain and the structure of the building)
• Target environment: For indoor use only
• Operating temperature: 0-40 ° C (32-104 ° F)
• Temperature measurement range: 0-60 ° C (32-140 ° F)
• Accuracy of temperature measurement: ± 0.5 ° C (± 0.9 ° F)
• Dimensions (L x W x H): 71 x 18 x 18 mm
• (2.8 x 0.7 x 0.7 inch)
