ZKTeco TFT 24'' EM/MF IP65 Access and Time & Attendance Control System

SKU
ZK-SC800-12-W-B
Brands:
€220.22 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

Access Control and Presence Control TFT 24'' IP65

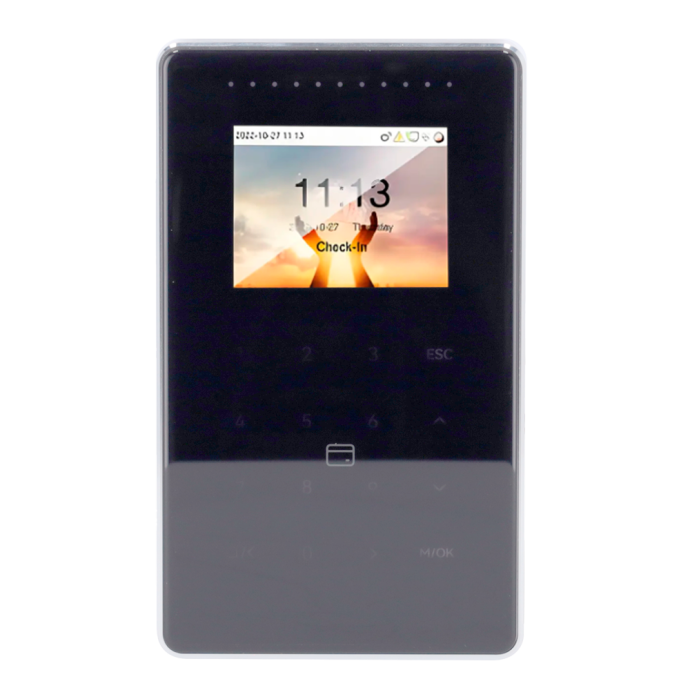

The ZK-SC800-12-W-B is a stand-alone access and presence control terminal manufactured by ZKTeco, ideal for access and presence management in a variety of indoor and outdoor environments.

It allows you to control who enters and who leaves the premises, as well as recording attendance times. It also has several methods of identification: proximity card, PIN and combinations that supports the combination of card and PIN for added security.

It has a capacity of up to 50,000 cards/passwords and storage of up to 200,000 records.

It functions as a stand-alone controller, with connections for door sensor, push button output and lock relay. It also includes alarm input and output.

It is compatible with several software: ZKBioCV this is for access control management, ZKBioTime 8 this software is for presence management and the Go Time Cloud is for presence in the cloud.

This access control has an IP65 protection means that they are resistant to dust and water, which makes it suitable for outdoor use.

Especificaciones Técnicas Control de Acceso y Presencia TFT 24'' IP65

System:

Processor: Not specified by manufacturer in general public information.
Memory: Not specified by the manufacturer in the general public information.
Operating System: Not specified by the manufacturer in the general public information.

Identification:

Identification Methods: Proximity Card, PIN.
Card Types Supported:
EM: 125 kHz
MF: 13.56 MHz (Mifare)
Card/Password Capacity: Up to 50,000
Registration Capacity: Up to 200,000

Communication:

TCP/IP: Yes
WiFi: Yes (2.4 GHz)
RS485: Yes
Wiegand: Wiegand Input and Output (supports 26-bit and 34-bit formats)

Access Control Interfaces:

Lock Relay: 1 (NO/NC/COM)
Door Sensor: 1 (input)
Exit Push Button: 1 (input)
Alarm Input: 1
Alarm Output: 1

Display:

Type: TFT color LCD
Size: 2.4 inches

Physical Features:

Housing Material: Metal frame with 2.5D tempered glass panel.
Protection Rating: IP65 (Dust and Water Resistant)
Vandal Resistant Rating: IK04 (Impact Resistant)
Dimensions (H x W x D): 145 mm x 62 mm x 26 mm
Net Weight: Not specified by the manufacturer in the general public information.
Operating Temperature: -10°C to +55°C (-10°F to +55°C)
Operating Humidity: 10% to 90% RH (non-condensing).

Power Supply:

Operating Voltage: 12V DC
Maximum Current: 3A (A stable 12V DC / 3A power supply is recommended).

Compatible Software:

ZKBioCV: Access control management software (limited free version).
ZKBioTime 8: Presence management software (limited free version).
GoTime Cloud: Cloud presence platform (subscription required).

Other Features:

Voice Messaging: Supports voice prompts.
Firmware Upgradeable: Yes, via USB or network.
